Megatron-LM Explained: Tensor, Pipeline, and Data Parallelism for Training Large Language Models

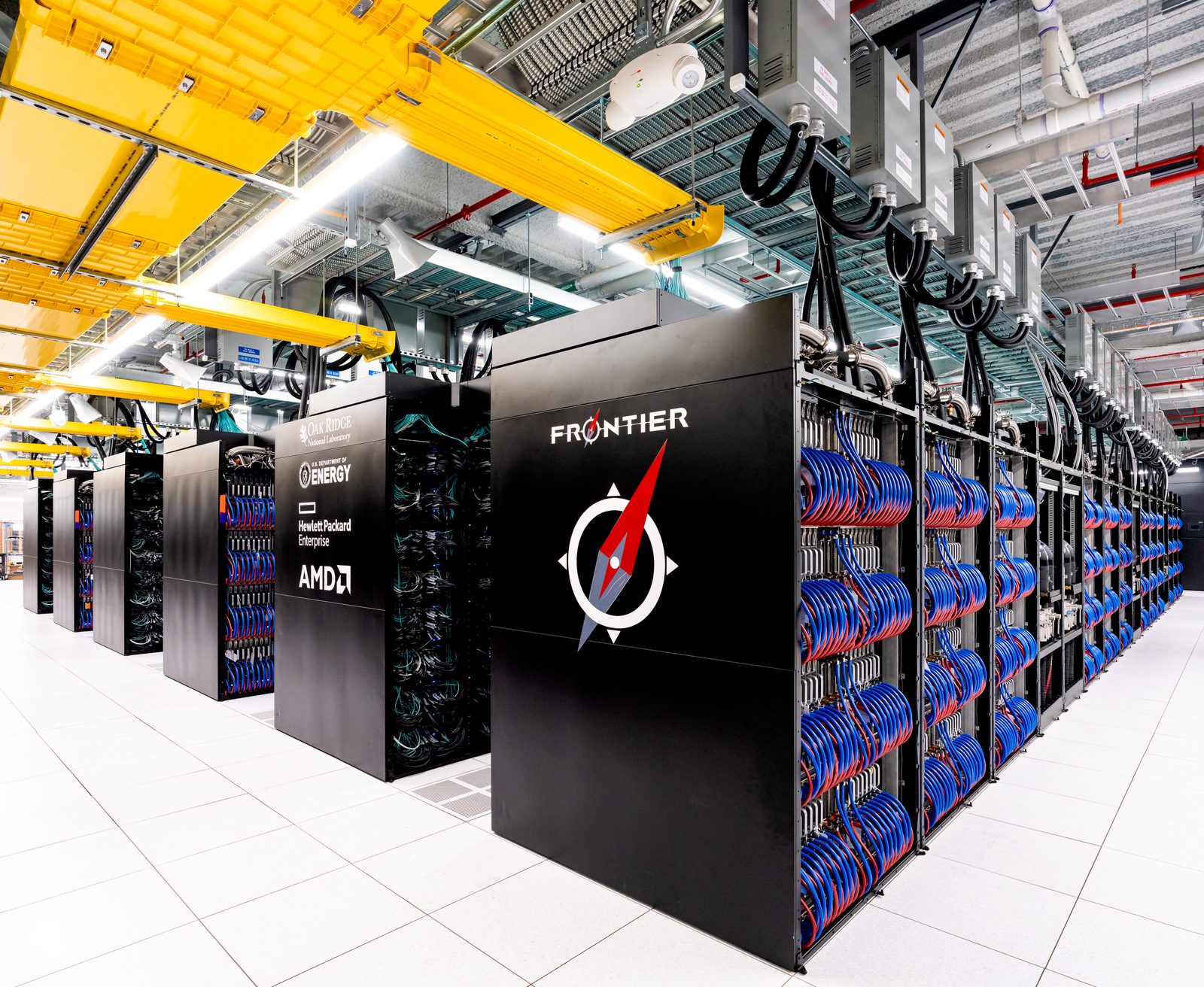

Hero: the Frontier exascale supercomputer at Oak Ridge National Laboratory. Photo by OLCF at ORNL, CC BY 2.0, via Wikimedia Commons.

Introduction

If you have ever asked “how do you actually train a 100-billion or trillion-parameter model when it doesn’t even fit on one GPU?”, the answer almost always involves Megatron-LM. Megatron-LM is NVIDIA’s system for training large language models by splitting both the model and the work across many GPUs at once.

Here’s the trap most explanations fall into: they describe Megatron-LM as “putting different layers on different GPUs.” That’s one small piece. The real substance of Megatron-LM is tensor parallelism — splitting the math inside a single layer — and, more broadly, how it composes tensor, pipeline, and data parallelism into what’s called 3D parallelism.

This post builds that picture from the ground up: what each kind of parallelism divides, the collective communication each one triggers, why GPU topology decides your layout, and why Mixture-of-Experts adds a whole new communication pattern. The individual ideas are simple. The engineering is in how they interact at scale.

The one-line mental model: Megatron-LM is not five tricks bolted together. It is a way to decompose an enormous model across a GPU cluster and carefully orchestrate computation and communication across multiple parallelism dimensions.

What Megatron-LM Actually Is (and Isn’t)

Before the mechanics, let’s kill the most common misconception.

Megatron-LM is not just “ZeRO + FSDP + tensor + pipeline + data parallelism” in a wrapper. That framing conflates two different families:

• Megatron-style parallelism — split the computation of the model across devices: tensor parallelism (TP), pipeline parallelism (PP), and classic data parallelism (DP).
• ZeRO / FSDP — shard the optimizer states, gradients, and parameters instead of replicating them. These come from DeepSpeed (ZeRO) and PyTorch (FSDP), and they are complementary to Megatron, not part of its definition.

You can — and large runs often do — combine Megatron’s TP/PP with a ZeRO/FSDP-style DP. But they solve different problems: Megatron splits work, ZeRO shards state. Keeping that distinction straight is the first step to reading any real training config.

flowchart TD
    M["Distributed LLM Training"] --> MEG["Megatron-style parallelism<br/>(split computation)"]
    M --> ZR["ZeRO / FSDP<br/>(shard model state)"]
    MEG --> DP["Data Parallel<br/>split batches"]
    MEG --> TP["Tensor Parallel<br/>split tensors in a layer"]
    MEG --> PP["Pipeline Parallel<br/>split layers by depth"]
    ZR --> S1["shard parameters"]
    ZR --> S2["shard gradients"]
    ZR --> S3["shard optimizer states"]
    MEG -. "complementary, often combined" .- ZR

The Three Axes of Parallelism

Every parallelism strategy answers one question: what gets divided? That single table is the map for the whole post.

The rest of this article is really just: for each row, how does it work, and what does it cost in communication?

Tensor Parallelism: Splitting the Layer Itself

This is Megatron-LM’s signature contribution, and the one worth understanding first. The premise: a single Transformer layer’s weight matrices can be so large that the layer itself doesn’t fit — or is too slow — on one GPU. So we split the matrix multiplies across GPUs, and they cooperatively compute one layer.

The clever part is how you split so that you communicate as little as possible.

The MLP block: column-parallel, then row-parallel

A Transformer MLP is essentially two matrix multiplies with a nonlinearity between them:

Megatron splits the first weight $A$ column-wise into $[A_1, A_2]$ across two GPUs. Because GeLU is applied element-wise, each GPU can compute its own slice independently, with no communication:

It then splits the second weight $B$ row-wise into $[B_1; B_2]$, matched to those slices. Each GPU computes a partial product, and the layer output is their sum:

That sum across GPUs is a single all-reduce. So the whole two-matmul block costs exactly one all-reduce in the forward pass (and, symmetrically, one in the backward pass).

flowchart LR
    X["input X<br/>(replicated)"] --> A1["GPU 0: X·A1"]
    X --> A2["GPU 1: X·A2"]
    A1 --> G1["GeLU → Y1"]
    A2 --> G2["GeLU → Y2"]
    G1 --> B1["GPU 0: Y1·B1"]
    G2 --> B2["GPU 1: Y2·B2"]
    B1 --> AR["all-reduce (sum)"]
    B2 --> AR
    AR --> Z["output Z<br/>(replicated)"]

Self-attention: split across heads

Attention is even more natural to split. Multi-head attention is already a set of independent heads, so Megatron assigns different heads to different GPUs. Each GPU holds the $Q$, $K$, $V$ projections for its heads and runs their attention fully locally. The final output projection is row-parallel, so — just like the MLP — combining the heads needs one all-reduce.

The payoff: minimal communication per layer

Add it up. Per Transformer layer, tensor parallelism needs only:

• 2 all-reduces in the forward pass (one in attention, one in the MLP), and
• 2 all-reduces in the backward pass.

That’s the whole trick. By choosing column-then-row splits, Megatron keeps the activations replicated at layer boundaries and pays for communication only twice per block. [This is the design from the original Megatron-LM paper, Shoeybi et al., 2019.]

The catch: those all-reduces happen on the critical path of every layer, many times per step. That’s why tensor parallelism is communication-hungry and, as we’ll see, why you want the TP group to live on the fastest interconnect you have.

Pipeline Parallelism: Splitting the Model by Depth

Tensor parallelism splits within a layer. Pipeline parallelism splits between layers — the “different layers on different GPUs” idea, done properly.

Say the model has 80 layers and 4 pipeline stages:

Stage 0: layers  1–20   →   Stage 1: layers 21–40
Stage 2: layers 41–60   →   Stage 3: layers 61–80

A single batch flows stage 0 → 1 → 2 → 3 for the forward pass, then back for gradients. Communication between stages is cheap: it’s point-to-point — each stage just sends the boundary activations to the next one. No expensive collectives.

The problem is the pipeline bubble. If stage 0 processes the batch and hands off, stages 1–3 sat idle waiting, and now stage 0 sits idle. Naively, most GPUs are doing nothing most of the time.

Microbatching hides the bubble

The fix is to split the batch into microbatches and stream them through, so every stage is working on a different microbatch at once:

time →
Stage 0:  MB1  MB2  MB3  MB4
Stage 1:       MB1  MB2  MB3  MB4
Stage 2:            MB1  MB2  MB3  MB4
Stage 3:                 MB1  MB2  MB3  MB4

The bubble never fully disappears — there’s still fill-up and drain at the ends. For $p$ pipeline stages and $m$ microbatches, the fraction of time wasted is approximately:

The lesson is immediate: use many more microbatches than stages ($m \gg p$) to shrink the bubble. Megatron’s later work adds an interleaved 1F1B schedule (each GPU holds several non-contiguous layer chunks) to cut the bubble further. [Narayanan et al., 2021.]

flowchart LR
    subgraph PP["Pipeline Parallelism"]
      direction LR
      S0["Stage 0<br/>layers 1–20"] -->|activations| S1["Stage 1<br/>layers 21–40"]
      S1 -->|activations| S2["Stage 2<br/>layers 41–60"]
      S2 -->|activations| S3["Stage 3<br/>layers 61–80"]
    end
    S3 -.->|"gradients (backward)"| S0

Data Parallelism: Replicate and Synchronize

The oldest and simplest axis. Data parallelism puts a full copy of the model on each replica and feeds each a different slice of the batch:

Replica 0 → batch shard A
Replica 1 → batch shard B
Replica 2 → batch shard C
Replica 3 → batch shard D

Each replica runs forward and backward independently, then they synchronize gradients — an all-reduce across replicas — so every copy applies the same update and stays identical.

DP scales throughput (more data per step), not model size: on its own it requires the whole model to fit on one replica. That’s exactly the limit that pushes you toward TP and PP — and toward combining all three.

flowchart TD
    D["Global batch"] --> R0["Replica 0<br/>full model"]
    D --> R1["Replica 1<br/>full model"]
    D --> R2["Replica 2<br/>full model"]
    R0 --> AR["all-reduce gradients"]
    R1 --> AR
    R2 --> AR
    AR --> U["identical parameter update<br/>on every replica"]

3D Parallelism: Composing DP × TP × PP

Here’s where it stops being trivia and becomes engineering. At scale you use all three at once, and the product of the dimensions is your GPU count:

With 64 GPUs you might pick DP = 4, TP = 4, PP = 4 ($4 \times 4 \times 4 = 64$). Every GPU now has three coordinates:

Conceptually: tensor-parallel groups cooperatively compute each layer; pipeline stages chain those layers by depth; and the entire TP×PP structure is replicated across data-parallel groups, each fed different data.

flowchart TD
    G["Global batch"] --> DP0["DP group 0"]
    G --> DP1["DP group 1"]
    DP0 --> P0["Pipeline stage 0"]
    DP0 --> P1["Pipeline stage 1"]
    P0 --> T0["TP: GPU A ⇄ GPU B<br/>(split each layer)"]
    P1 --> T1["TP: GPU C ⇄ GPU D<br/>(split each layer)"]
    DP1 --> P0b["Pipeline stage 0"]
    DP1 --> P1b["Pipeline stage 1"]
    P0b --> T0b["TP: GPU E ⇄ GPU F"]
    P1b --> T1b["TP: GPU G ⇄ GPU H"]

The part that’s actually hard: three communication patterns at once

Follow one microbatch through a 3D-parallel system and you’ll see three different communication styles firing simultaneously:

So when someone says “we train with TP=8, PP=4, DP=16”, they aren’t just saying “512 GPUs.” They’re describing a communication topology — how often each kind of message flies, how big it is, and over which wires. That’s the real object you’re tuning.

Where the Communication Happens: A Collectives Primer

Every axis above leans on a small set of collective communication primitives. Knowing them makes configs readable:

• All-reduce — every GPU ends up with the sum (or mean) of a value from all GPUs. Used for TP layer outputs and DP gradient sync.
• All-gather — every GPU collects the concatenation of shards from all GPUs. Used by ZeRO/FSDP to reconstruct parameters, and by sequence parallelism.
• Reduce-scatter — sum across GPUs, but each keeps only its shard of the result. The dual of all-gather; an all-reduce is exactly a reduce-scatter followed by an all-gather.
• All-to-all — every GPU sends a distinct chunk to every other GPU. The signature pattern of MoE expert routing.
• Point-to-point (send/recv) — one GPU to one GPU. The cheap backbone of pipeline parallelism.

The volume and placement of these collectives — not the FLOPs — is what usually decides whether a big run is fast or a bandwidth-bound crawl.

Hardware Topology: Why GPU Placement Decides Everything

You do not assign parallelism dimensions to GPUs at random. The reason is a brutal bandwidth cliff between talking inside a server and between servers.

• Inside a node, GPUs talk over NVLink / NVSwitch — very high bandwidth (hundreds of GB/s per GPU).
• Between nodes, traffic crosses the network — InfiniBand / Ethernet — which is roughly an order of magnitude slower than intra-node NVLink.

Now match that to what each axis needs:

• Tensor parallelism does collectives on the critical path of every layer → highest, most frequent communication → keep the TP group inside one node, on NVLink.
• Pipeline parallelism sends only boundary activations point-to-point → lowest volume → happily spans across nodes.
• Data parallelism syncs gradients once per step → tolerant of slower links → fills the remaining dimension.

flowchart TD
    subgraph N0["Node 0 — NVSwitch (fast)"]
      A["GPU 0"] <--> B["GPU 1"]
      B <--> C["GPU 2"]
      C <--> A
      note0["TP group: chatty, stays local"]
    end
    subgraph N1["Node 1 — NVSwitch (fast)"]
      D["GPU 4"] <--> E["GPU 5"]
      E <--> F["GPU 6"]
      F <--> D
    end
    N0 <-->|"InfiniBand (~10× slower):<br/>pipeline activations + DP gradients"| N1

That single rule of thumb — TP within a node, PP/DP across nodes — is one of the most important practical takeaways from the Megatron line of work.

The Broader Ecosystem: Sequence Parallelism and Activation Recomputation

Megatron didn’t stop at 3D parallelism. Two more ideas matter because they attack activation memory, which often becomes the real ceiling before parameters do:

• Sequence parallelism (SP). Tensor parallelism leaves the LayerNorm and dropout regions replicated across the TP group, wasting memory. SP partitions those regions along the sequence dimension instead. It pairs with TP and cleverly turns TP’s all-reduce into an all-gather + reduce-scatter — the same total communication volume, but far less activation memory. [Korthikanti et al., 2022.]
• Selective activation recomputation. Rather than recomputing every activation in the backward pass (classic gradient checkpointing), Megatron recomputes only the cheap-to-redo, memory-heavy parts, trading a little compute for a lot of saved memory.

These are why modern Megatron configs mention sequence-parallel and recompute flags — they’re the memory-side companions to the compute-side parallelism.

MoE Changes the Picture: Enter All-to-All

This is especially relevant if you’re studying Mixture-of-Experts models like Nemotron 3 Nano’s MoE hybrid architecture. With a dense Transformer, TP/PP/DP already give you a rich communication pattern. MoE adds another one entirely.

In an MoE layer, a router sends each token to a few experts — and those experts may live on different GPUs. So each token has to travel to wherever its expert is, get processed, and come back:

flowchart TD
    T["Tokens on each GPU"] --> RT["Router picks experts"]
    RT --> A2A["all-to-all dispatch"]
    A2A --> E0["GPU 0: Expert 17"]
    A2A --> E1["GPU 1: Expert 42"]
    A2A --> E2["GPU 2: Expert 91"]
    E0 --> A2B["all-to-all combine"]
    E1 --> A2B
    E2 --> A2B
    A2B --> O["tokens return to origin GPU"]

That all-to-all dispatch and combine is the defining cost of expert parallelism, and it’s why large MoE training adds a scheduling and load-balancing headache on top of everything above: if the router sends too many tokens to one expert’s GPU, that GPU becomes the bottleneck.

Key Takeaways

• Megatron-LM’s core is tensor parallelism — splitting the matmuls inside a layer (column-then-row for the MLP, by-heads for attention), costing just ~2 all-reduces per layer per pass. Learn this first.
• Pipeline parallelism splits layers by depth and hides its bubble with microbatching; the bubble fraction is about $\frac{p-1}{m}$, so use many microbatches.
• Data parallelism replicates the model and all-reduces gradients — it scales throughput, not model size.
• 3D parallelism = DP × TP × PP, and the hard part is that each axis has a different communication pattern running at once.
• GPU topology dictates layout: put the chatty TP group inside a node (NVLink), let PP and DP cross the slower network.
• ZeRO / FSDP shard state and are complementary to Megatron, not part of it.
• MoE adds all-to-all communication on top of everything — the newest and trickiest dimension.

Related Reading

• Why We Need Distributed Training and Inference — the motivation layer beneath this post: why one GPU stopped being enough.
• Nemotron 3 Nano: MoE Hybrid Mamba-Transformer — a real MoE model where expert parallelism and all-to-all communication show up in practice.
• Maximal Update Parameterization (μP) — the scaling companion: how to set hyperparameters for the giant models Megatron lets you train.
• XLA, GPU Kernels, and Fusion — the single-GPU efficiency layer that sits under all of this.

Conclusion

Your first instinct — “the concepts themselves are easy” — is correct. Data, tensor, and pipeline parallelism are each a one-sentence idea. Reading the Megatron-LM papers isn’t about decoding the labels.

The reason people spend months on this is the interaction: making a trillion-parameter model train efficiently across thousands of GPUs means reasoning about where every collective happens, how the pipeline bubble trades against memory, how activation recomputation trades against compute, and how NVLink-versus-InfiniBand bandwidth reshapes your entire layout — all at once.

So the honest advice: learn the mechanisms and the collective behind each one (you now have them), then move quickly to the systems layer. Because the actual skill isn’t knowing what tensor parallelism is. It’s making 1,000+ GPUs behave like one efficient machine — and that’s the problem Megatron-LM was built to solve.
